Why choose Viriform Composite Floor Deck Range

Why choose Viriform Composite Floor Deck Range

  • Fast build time provided by quick installation and prop free concrete floors.
  • High levels of fire resistance from all ComFlor® slabs with zero sofft protection.
  • Colorcoat FD® pre-finished steel soffitt offer significant extra protection and corrosion resistance.
  • Full traceability of all components.
  • Certified ‘Very Good’ to BREs responsible sourcing standard BES 6001 to maximised points in BREEAM.
  • Covers unpropped construction from 2.5m to 4.5m

Irish made profiles CF51 and CF60

Irish made profiles CF51 and CF60

  • ComFlor® composite floor deck acts as a working platform.
  • Act as a permanent formwork for the concrete slab.
  • Provides fully integrated composite action between steel deck and slab.
  • Allows composite action between the steel beam and slab via shear studs.
  • Eurocode compliant.

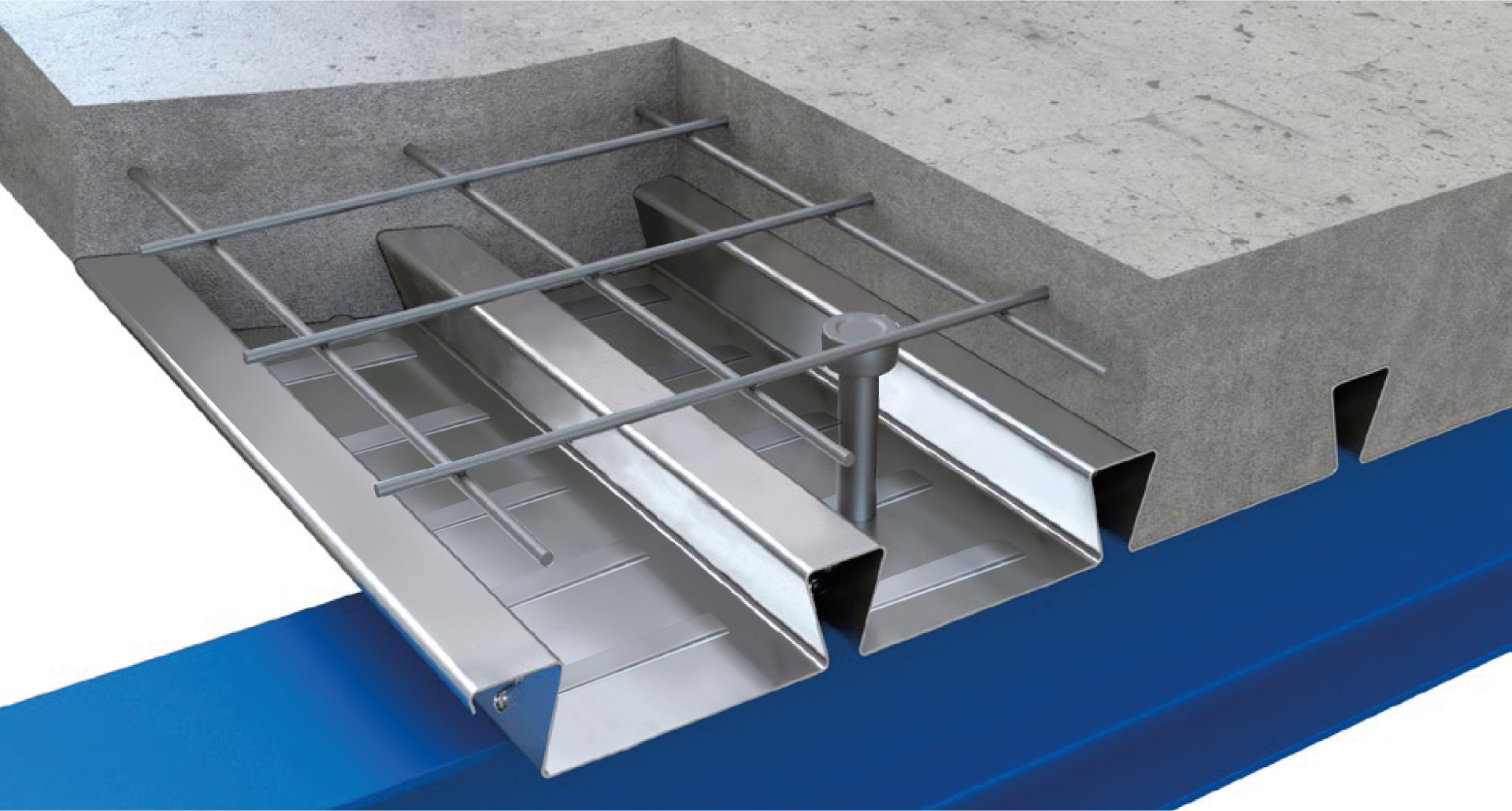

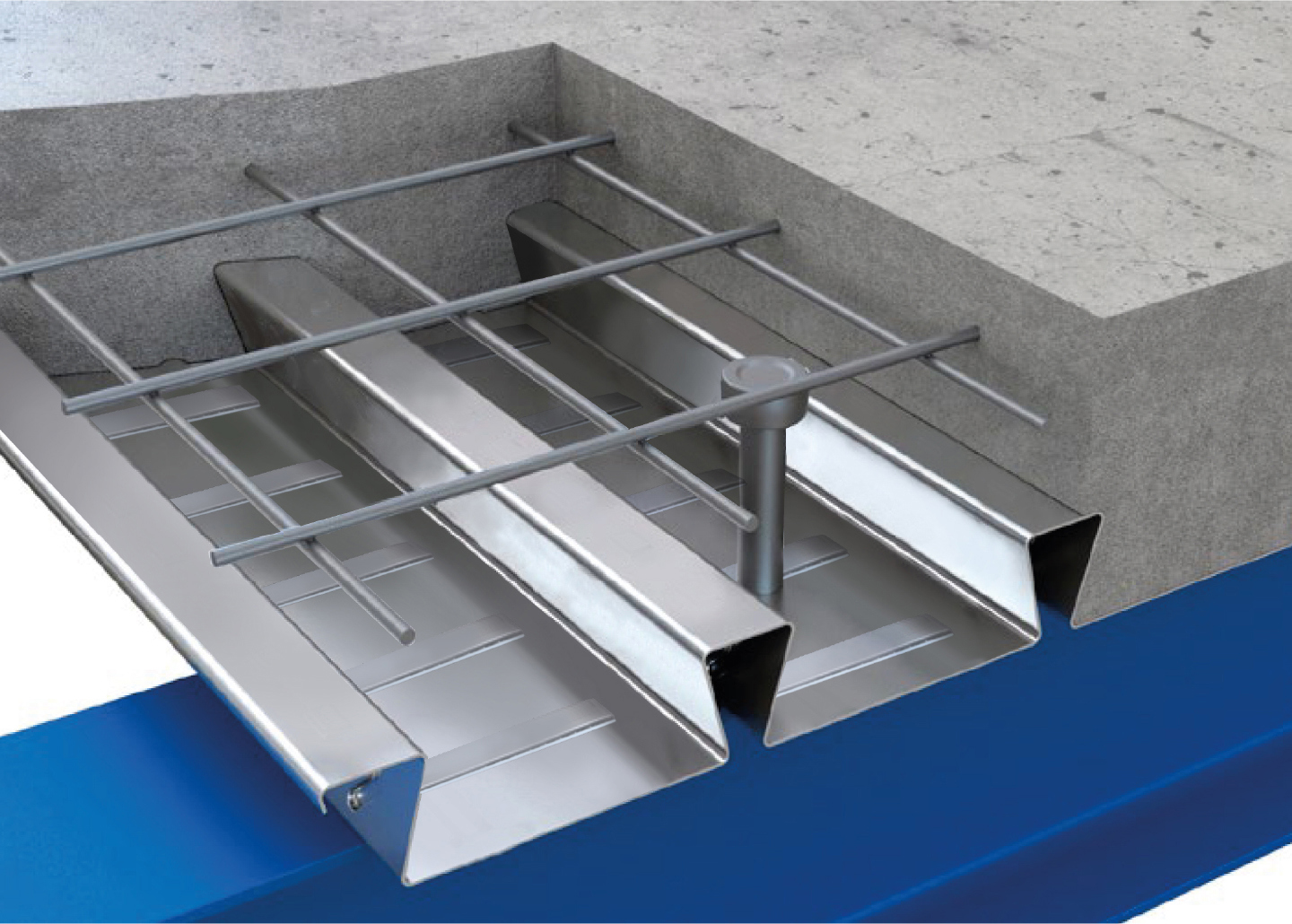

ComFlor 51

ComFlor 51

The original Irish re-entrant profile. Viriform’s most popular floor deck.

  • Virtually flat soffit for a clean aesthetic appeal.
  • Composite performance – floor slab. Classic re-entrant profile provides excellent composite slab strength.
  • Composite performance – beam. Due to effective shear stud performance.
  • Fire and acoustic performance.
  • Easy attachment for services.

ComFlor 60

Viriform Comflor 60

ComFlor 60

Ireland’s most successful new generation combined trapezoidal and re-entrant 60mm profile.

  • Versatile. Combined round shouldered profile gives excellent span capability with straightforward service attachment.
  • Low concrete and steel usage.
  • Central stud placement.
  • Crushed ends.
  • Available in Colorcoat FD® pre-finished steel to the soffit.
  • 600mm cover, as recommended by Health and Safety guidelines.

Other profiles in available in the Viriform ComFlor range

Other profiles in available in the Viriform ComFlor range

ComFlor 46, ComFlor 80 and ComFlor 100 profiles.

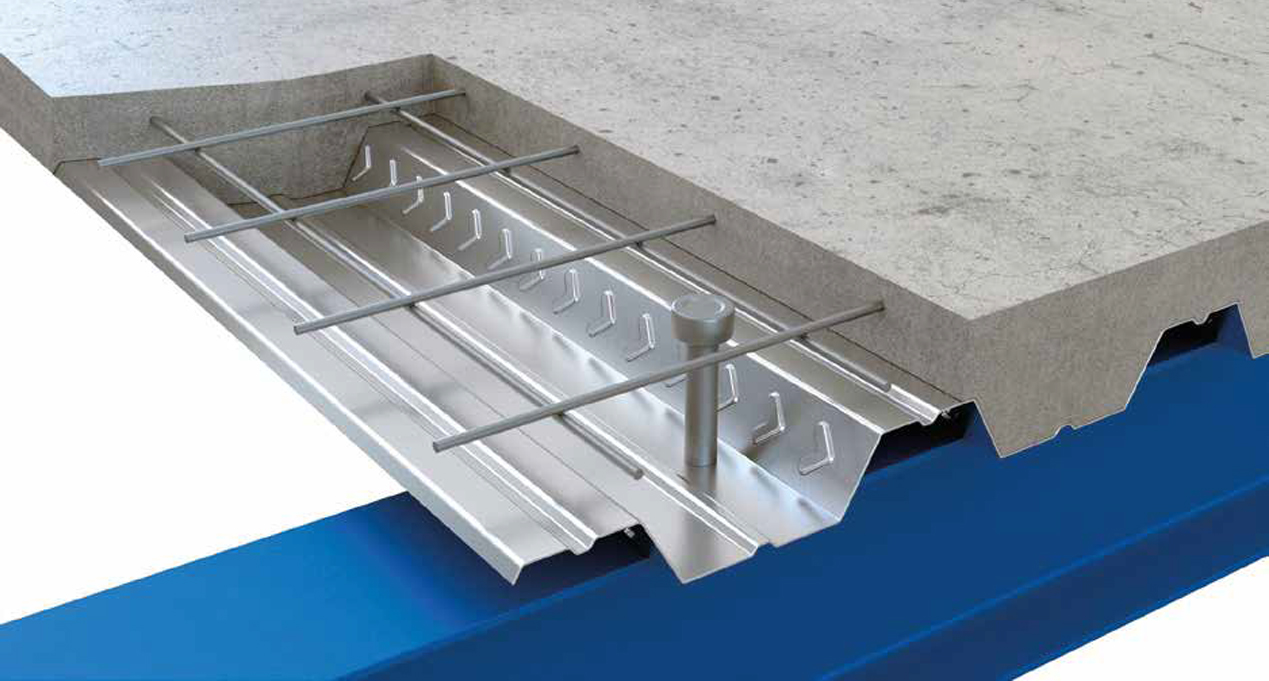

ComFlor 46

Viriform ComFlor 46

ComFlor 46

Classic composite flooring profile, easily transported, simple and effcient.

  • Nestable. The simple trapezoidal shape neatly fits one profile into another, allowing more square metres per bundle.
  • Low transport cost. Results in reduced environmental impact and less crane time.
  • Fast laying.
  • Economic.
  • Eurocode compliant.

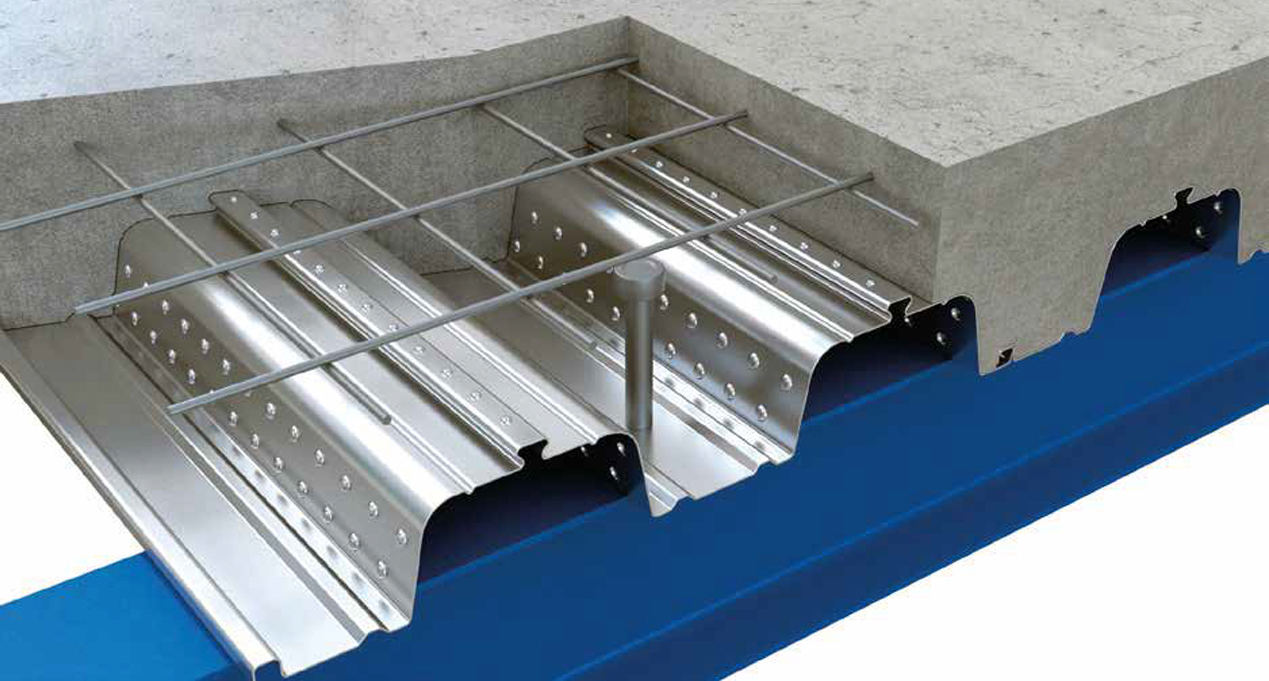

ComFlor 80

Viriform Comflor 80

ComFlor 80

Combined trapezoidal and re-entrant 80mm composite profile with long span capability.

  • Versatile. Combined profile allows easy service attachment, with trapezoidal spanning ability.
  • Reduces the number of secondary beams.
  • Central stud placement.
  • Available in Colorcoat FD® pre-finished steel to the soffit.
  • 600mm cover, as recommended by Health and Safety guidelines.
  • Eurocode compliant.

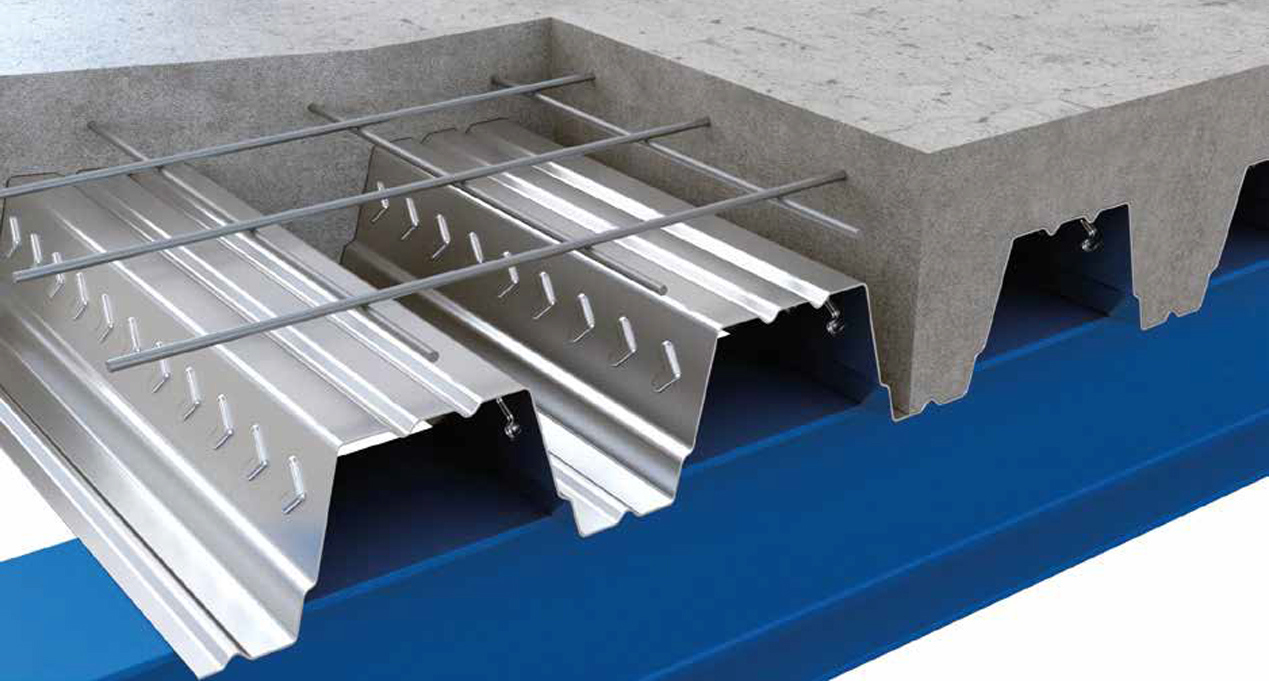

ComFlor 100

Viriform ComFlor 100

ComFlor 100

Strong long span composite profile for non-composite beams.

  • Long span strength reduces or eliminates temporary propping.
  • Fast laying.
  • Suitable for use with concrete beams or non-composite steel beams.
  • Nestable profile gives low handling costs.

Contact the experts

We are here to support you, feel free to contact us with any queries with may have.

Technical Support

At Viriform, we are committed to providing outstanding customer care and technical support. We can help with design calculations, software tools, acoustic design and so much more.
