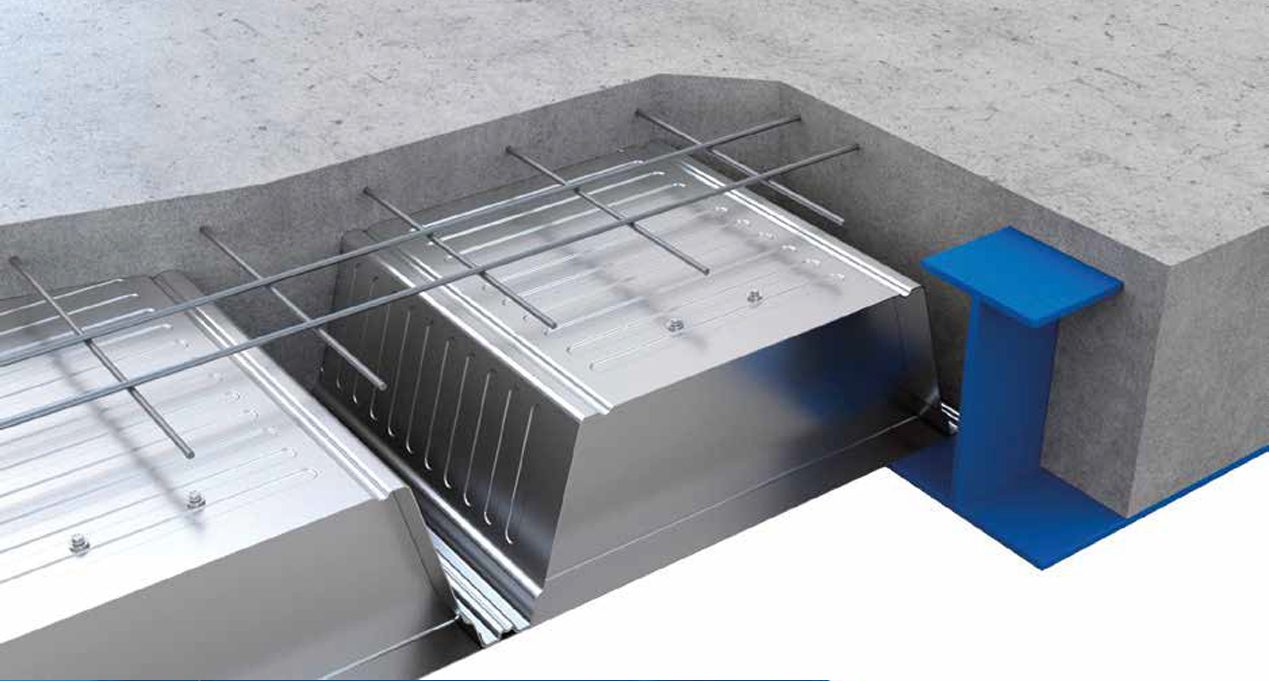

The original deep ultra-long span composite profile introduced for the first Slimflor® systems.

• Cross stiffener technology and deep profile shape provides a very efficient metal deck and composite slab.
• Especially suited to bear on the extended lower flange of a steel beam, can also be used on the top flange.
• Nestable profile gives low transport and handling costs.
• Eurocode compliant.
• End scallops required (as shown below).

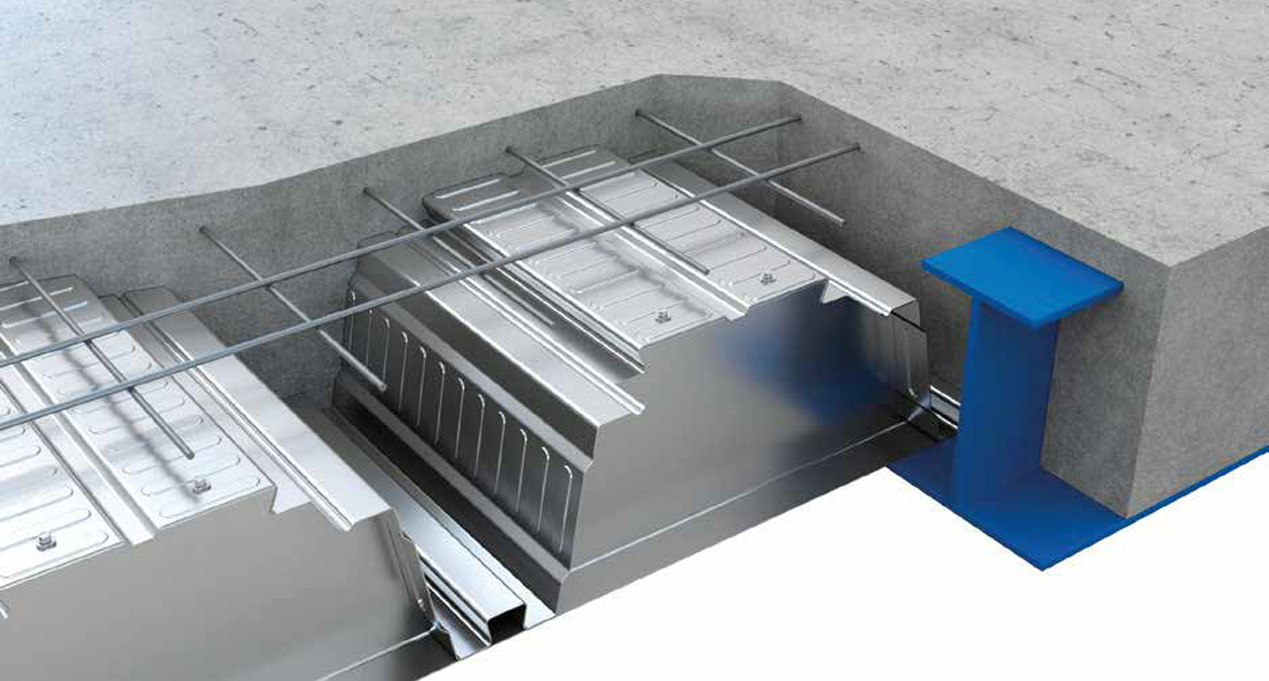

High performance deep deck specifically designed for Slimdek® and all other integrated steel beam systems.

• Optimised profile design gives superb span capability and composite performance.
• Enables all the benefits of Slimdek® type systems. Including 6m unpropped spans, big open area and slimmer floor zone.
• Easy service attachment and integration.
• Provides reduced overall floor height with fewer steel beams which enables an extra floor every eight floors.
• Eurocode compliant.
• End scallops required (as shown below).

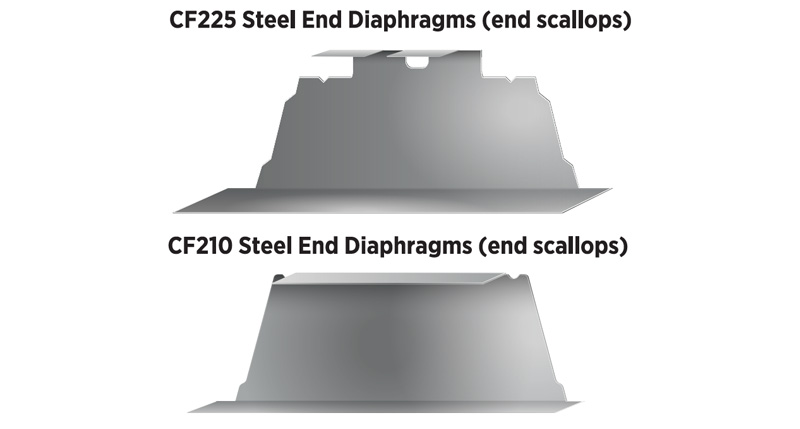

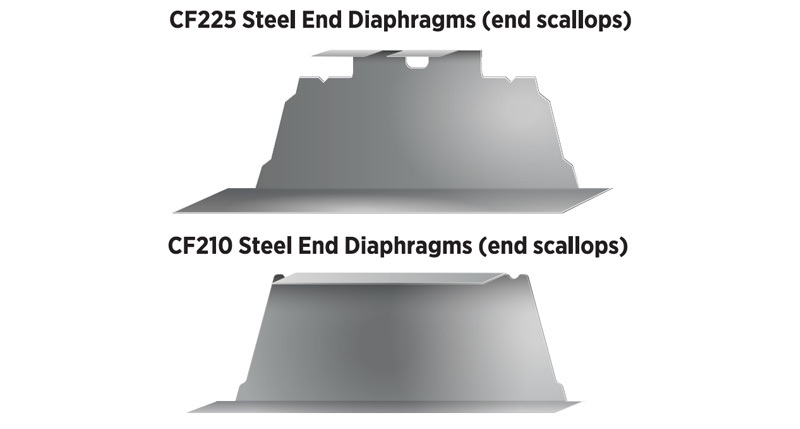

Steel End Diaphragms (end scallops) are essential for both deep deck to ensure structural integrity of the deck. They are supplied in 1.8 metre lengths which cover three deep deck profiles.
